Digiducer® Digital Vibration Meter Kit

Simplify Machine Vibration Monitoring | Model K333D01-VM

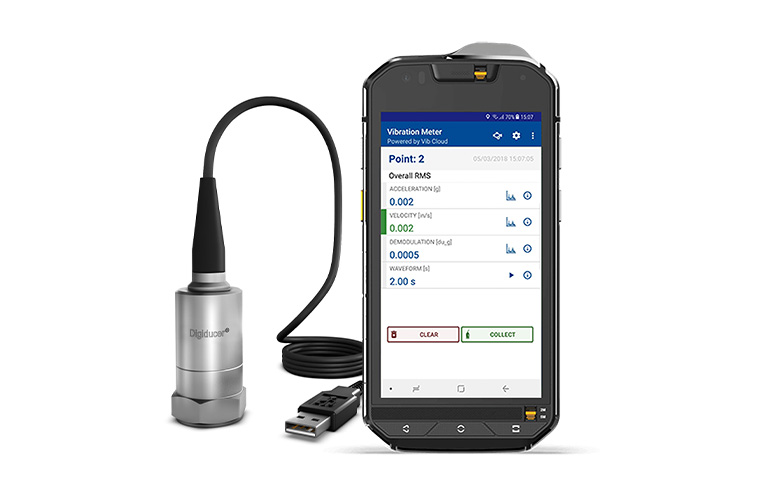

digi k333d01 product 1Digital Vibration Meter Kit Model K333D01-VM from The Modal Shop turns your smartphone into a portable vibration meter. The kit provides software, mounting hardware, and connections, with pre-programmed ISO-based vibration severity scales to provide instant feedback on machine health and vibration exceedance. Share reports right from your smartphone. Digital Vibration Meter Kit is an easy-to-use and cost-effective way to start monitoring machine health or enhance an existing machinery vibration monitoring program. The app collects, records, and stores data for multiple machines. Users can attach pictures of and create notes about each machine, making the Digital Vibration Meter Kit an ideal tool for route-based vibration screening.



  • Pair with a smartphone to use as a portable vibration meter
  • Ideal for all levels of expertise, from novice to expert
  • Includes rugged piezoelectric sensing technology
  • Mounting kit ensures consistent, repeatable vibration readings
  • Displays and records FFT spectra
  • Generates pdf reports of vibration levels and severity


  • Machinery Vibration Event Detection
    • Imbalance
    • Misalignment
    • Bearing Faults
    • Gear Mesh
    • Pump Cavitation
  • Route-Based Predictive Maintenance
  • Machine Vibration Analysis


View Datasheet | View Specification Sheet

Measurement Range± 20 g pk (± 196 m/s2)
Frequency Range
Acceleration10 Hz – 10 kHz
VelocityISO 10 Hz – 1 kHz
Demodulation1 kHz (filter 2 kHz – 10 kHz)
Accuracy± 3%
Power ConsumptionLess than 45 mA
Temperature Range (Operating)14 °F to 158 °F (-10 °C to +70 °C)
Housing MaterialStainless Steel
SealingWelded Hermetic

Kit Contents

Product NameModel Number
Digital USB Accelerometer333D01
Mounting Stud ¼-28081A40
Curved Surface Mount080A131
Probe Tip 2 in080A107
Adapter CablesUSB to Lightning, USB Type A to USB Type C
Soft Protective Storage Case2000X13
VibeCheck AppFree Measurement App

Software and Support



Contact us about support for the Digital Vibration Meter Kit.

Resources & Education

For more articles, videos, and Tech Talks, visit our Education Portal
