Shaker Tables for Vibration Testing and Calibration

In the world of vibration testing, the words “shaker table” or "vibration table" can have many different meanings. Shaker tables are used to perform various types of testing, from general vibration testing of components to vibration testing of structures or even calibration of dynamic transducers. Shaker tables can be related to any of the following product options:

• Devices for calibrating accelerometers and proximity probes in the field
• General purpose platform vibration shakers
• Horizontal tables, slip tables, head expanders and shaker combinations
• Servo hydraulic and mechanical tables

Portable Shaker Tables for Vibration Sensor Validation

In the industrial sector, condition monitoring sensors must be checked quickly and efficiently. The 9100D and 9200D Portable Shaker Tables provide a known and repeatable dynamic excitation level to validate sensors. Test and validate

• Proximity probes
• Accelerometers
• Velocity sensors
• Machinery health and condition monitoring systems
• Data collectors and vibration analyzers

Learn More

Portable Vibration Calibrators

For those in the test instrumentation market who need to produce a calibration or verification certificate, The Modal Shop recommends the 9110D or 9210D Portable Vibration Calibrators. The 9110D and 9210D calculate and display test sensor sensitivity on the readout screen in real time. Test and validate

• Accelerometers
• Proximity probes
• Velocity sensors
• Machinery health and condition monitoring systems
• Data collectors and vibration analyzers

Learn More

Horizontal Shaker Table

Supports heavier loads not suitable to be attached directly to a shaker. The system is flexure based, as opposed to oil slip tables, allowing it to be used both vertically and horizontally. A 6 x 7.5 inch platform with mounting inserts enables versatile operation. Test applications include

• Electronic modules
• Automotive assemblies
• Aerospace devices
• Disk drive testing

Learn More

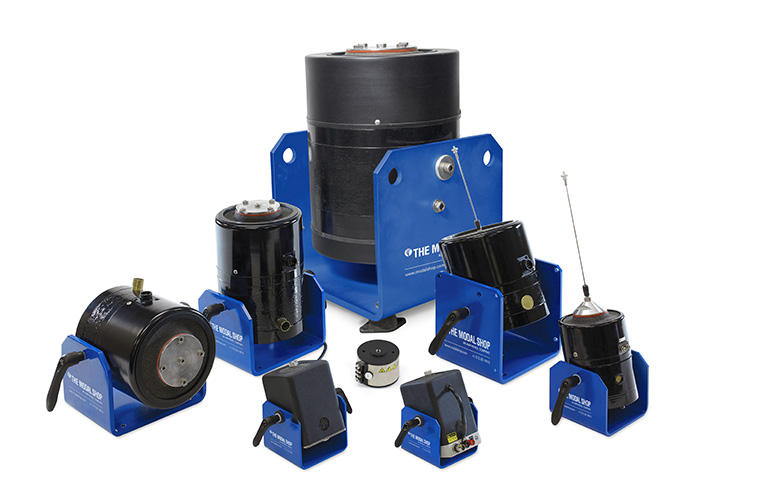

Vibration Shakers

The most versatile option for shaker table testing. Compact, portable shakers, 2075E and 2110E, can produce up to 110 lbf, making them suitable for a wide range of applications.These shakers provide up to a 3.25 in diameter platform table with (5) 10-32 inserts, making it easy to attach test objects. An optional head expander is available and quadruples the useable testing area. Test applications include

• Automotive components
• Aerospace devices
• Electronic modules
• Subassemblies
• Environmental testing
• Vibration testing

Learn More

Please contact The Modal Shop with questions. An experienced Application Engineer will be able to help you select the right Shaker Table for your testing needs.
